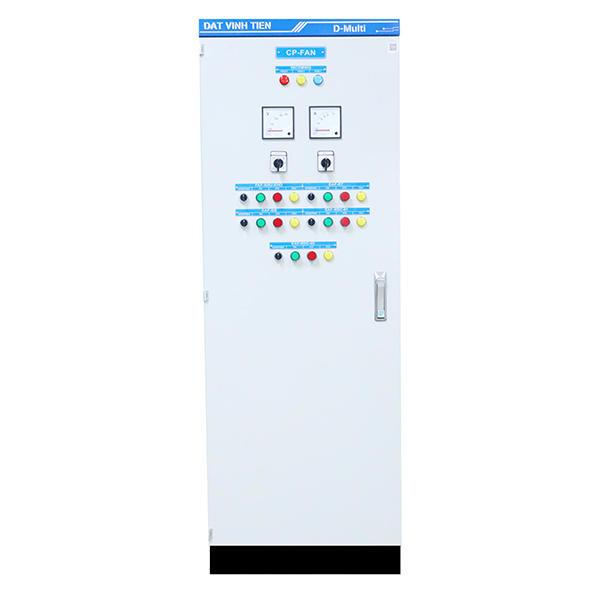

DB SWITCHBOARD

Distribution board is used in low voltage electrical distribution system, with rated current up to 1000A, supplied power for a  group of devices or power terminal (pumps, motors, machines...) low voltage electrical distribution system, with rated current up to 1000A, supplied power for a  group of devices or power terminal (pumps, motors, machines...)

Distribution board is used in low voltage electrical distribution system, with rated current up to 1000A, supplied power for a  group of devices or power terminal (pumps, motors, machines...)


Frame Material Steel Sheet
Frame Thickness (mm) 1.5
Ingress Protection IP 30/31/42/54
Internal Separation Form 1, 2a, 2b
Color RAL 7035 W
In/Out Cable Above/Below
Mounting Type Wall-mounted/Self-Standing
Environment Indoor/Outdoor
Down load Brochure Catalogues Tủ Điện
Liên hệ

(028) 7300 0296

info@datvinhtien.vn

Product Information
Standard IEC 61439 - 1
Rated Insulation Voltage (Ui) V 1000 VAC
Rated Impulse Withstand Voltage (Uimp) kV 690 VAC
Rated Frequency (Hz) 50/60
Rated Operational Voltage (In A) Up to 400A
Rated Short-time Withstand Voltage Icw (kA/1s) 25 (100 - 250-400A)
35 (630 - 800A)
Rated Peak Withstand Current Ipk (kA) 53
Earthing System TNC TNS IT TT
